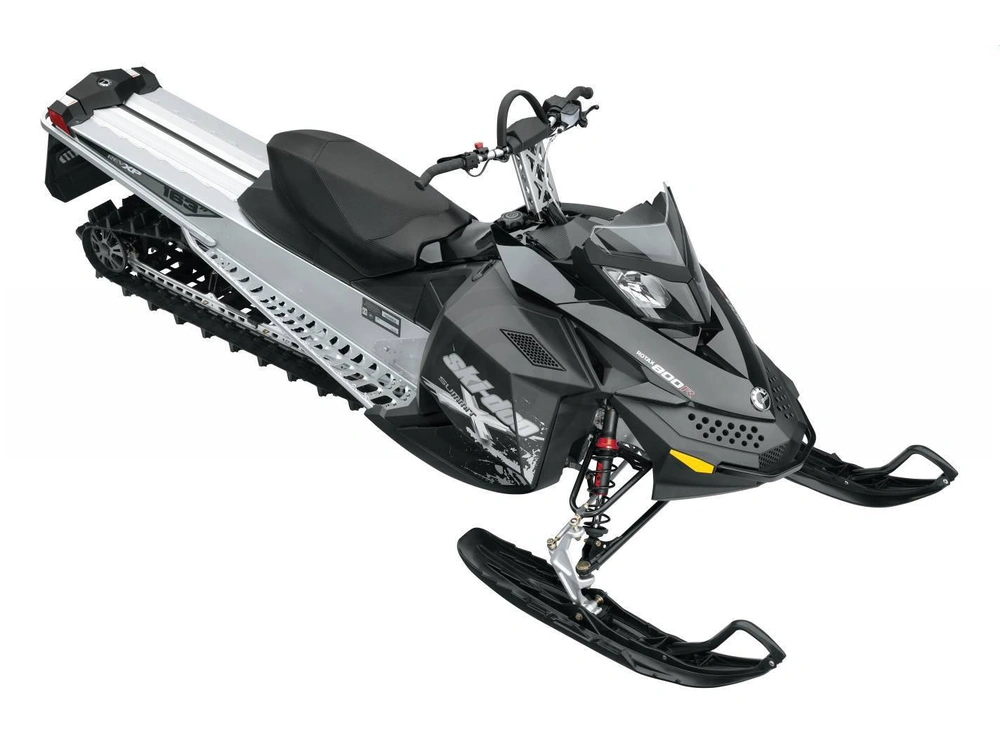

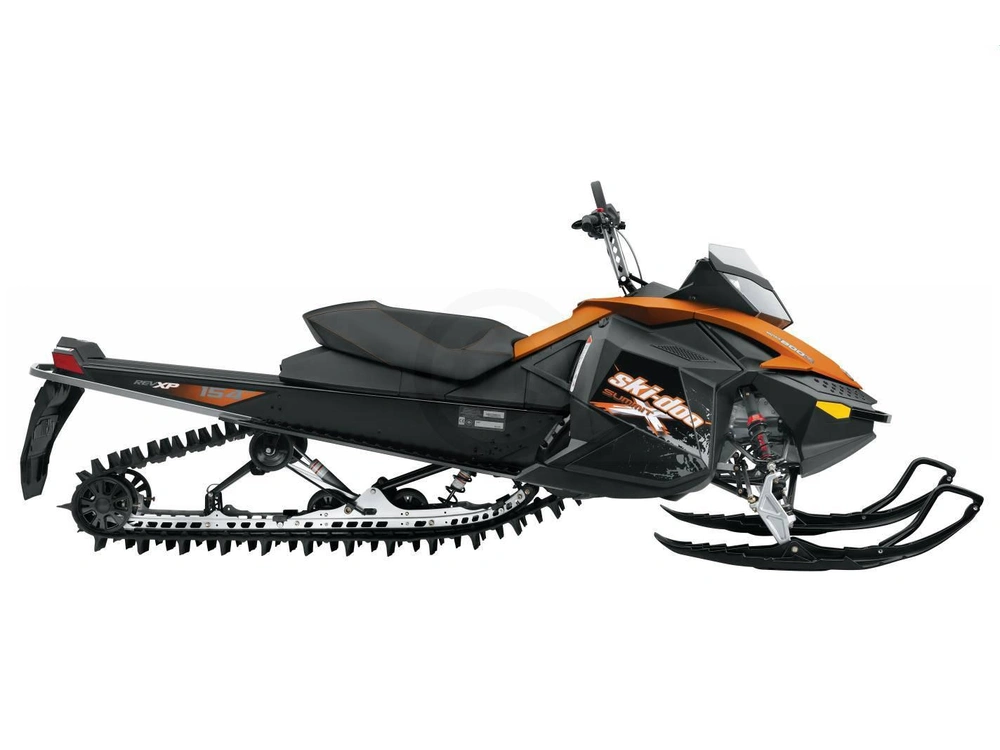

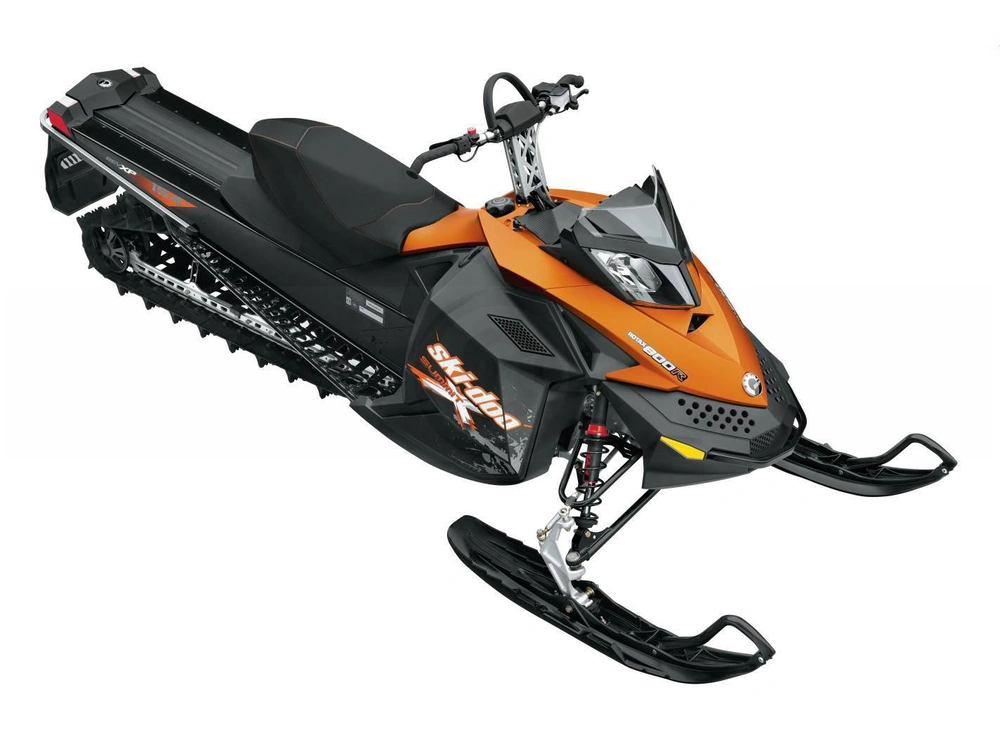

2010 Ski-Doo Summit X Rotax 800R PowerTEK 146"

* Frame: REV-XP
* Skis: Pilot 6.9
* Seating: REV-XP X Narrow
* Handlebar: Aluminum with J-hooks / Riser block (205 mm / 8 in) / Mountain strap
* Electric start: Optional
* Reverse: RER
* Heated throttle lever: Standard
* Heated grips: Standard
* Speedometer: Standard
* Tachometer: Standard
* Fuel gauge: Standard
* Temperature gauge: Optional
* Mirrors: Optional
* Windshield: 140 mm / 5.5 in
* Carbide runner: Standard
* Hitch: Optional

Package Highlights* 151 hp Rotax® 800R PowerTEK engine
* REV-XP platform
* NEW REV-XP X Narrow seat
* Brembo racing brake with braided
* stainless-steel brake line
* Lightweight chromoly front suspension
* lower A-arm
* SC™-5M rear suspension
* HPG™ Plus shocks
* PowderMax track lengths: 146
* Pilot™ 6.9 skis
* Multi-function digital gauge w/display
* Riser block / Low windshield
* RER™ electronic reverse
* Adjustable ski stance

Engine* Engine: Rotax 800R PowerTEK
* Engine details: Liquid-cooled, 3-D R.A.V.E.™
* Cylinders: 2
* Displacement: 799.5 cc / 48.8 in³
* Bore: 82 mm / 3.2 in
* Stroke: 75.7 mm / 3 in
* Max. engine speed: 8150 RPM
* Carburetion: 2X TM-40
* Recommended fuel type: Premium unleaded
* Min. octane: 91
* Fuel tank: 40 liters / 10.6 gallons
* Oil tank capacity: 3.7 liters / 3.9 quarts
* Exhaust system: Single tuned-pipe, baffle muffler

Powertrain* Drive clutch type: TRA™ VII
* Driven clutch type: QRS
* Engagement: 3800 RPM
* Small sprocket number of teeth: 21
* Large sprocket number of teeth: 45 (146 in - 154 in) 49 (163 in)
* Drive sprocket number of teeth: 8
* Drive sprocket diameter: 183 mm / 7.2 in
* Brake system: Brembo racing brake with braided stainless-steel brake line

Suspension* Front suspension: Dual A-arm
* Front shock: HPG Plus
* Front suspension max. travel: 229 mm / 9 in
* Rear suspension: SC-5M
* Center shock: HPG Plus
* Rear shock: HPG Plus
* Rear suspension max. travel: 356 mm / 14 in (146 in)

Dimensions* Vehicle overall length: 3200 mm / 126 in
* Vehicle overall width: 1159 to 1204 mm / 45.6 to 47.4 in
* Vehicle overall height: 1000 mm / 39.4 in
* Official dry weight: 201 kg / 442 lb
* Ski stance: 975 mm to 1018 mm / 38.4 to 40.1 in
* Ski overall length: 1066 mm / 42 in
* Ski width: 175 mm / 6.9 in
* Track nominal width: 406 mm / 16 in
* Track nominal length: 3705 mm / 146 in
* Track profile height: 57.2 mm / 2.25 in

Color* Orange/Black
* Deep Black
