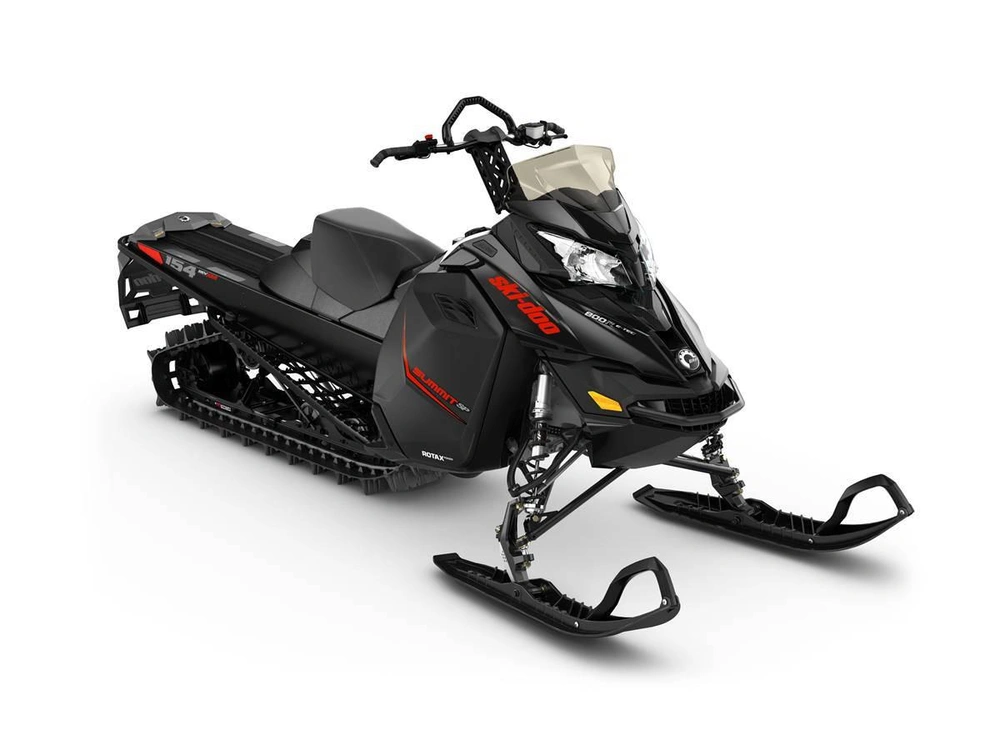

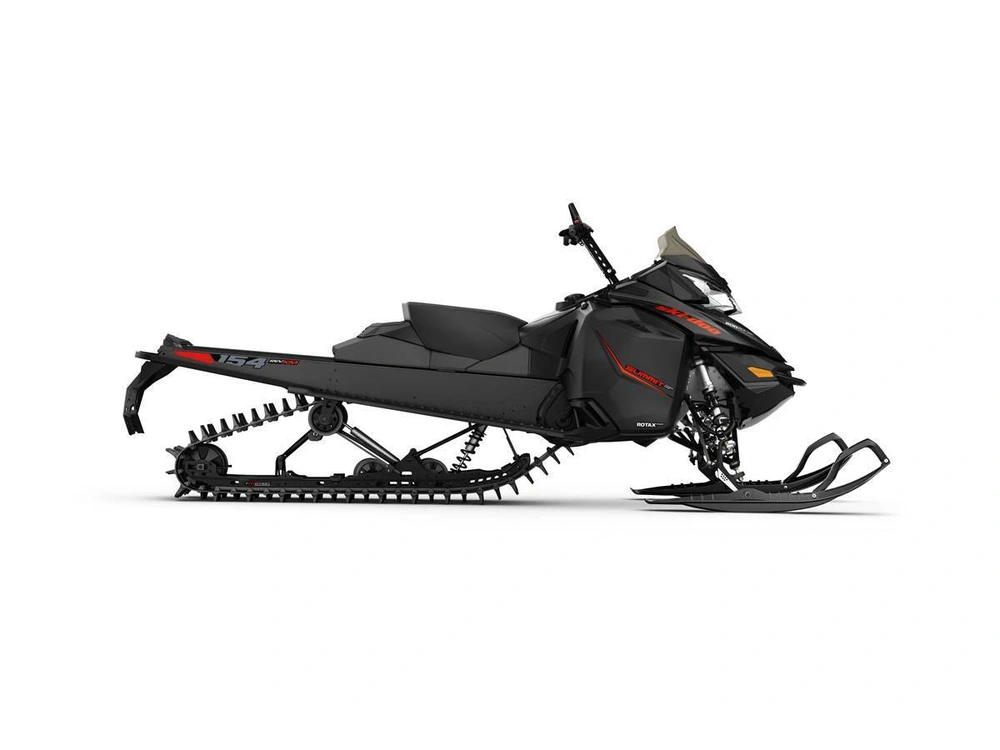

2016 Ski-Doo Summit® SP Rotax® 800R E-TEC® 154 - Black

Package Highlights* NEW RAS™ 2 front suspension
* REV-XM™ platform
* tMotion™ rear suspension
* Pilot™ DS 2 skis
* Adjustable narrow ski stance
* Brembo racing brake with braided stainless-steel brake line
* Lightweight, low profile REV-XM seat with 3 L / 0.8 gal of storage
* RER™ electronic reverse
* Ergonomic, multifunction digital gauge with display with engine temperature gauge
* Glove box with 4 L / 1 gal of storage
* Running boards with large opening
* RF D.E.S.S.™ key
* Stiffer grab handle on handlebar

Extra Highlights* 16 x 146/154/163 x 2.5-inch PowderMax FlexEdge track

Engine* Engine: Rotax® 800R E-TEC
* Engine details: Liquid-cooled, 3-D R.A.V.E.™
* Cylinders: 2
* Displacement: 799.5cc / 48.8 in.³
* Bore: 82 mm / 3.2 in.
* Stroke: 75.7 mm / 3 in.
* Maximum engine speed: 7900 RPM
* Carburation: Electronic Direct Injection
* Recommended fuel type: Premium unleaded
* Minimum octane: 91
* Fuel tank: 40 liters / 10.6 gallons
* Oil tank capacity: 3.7 liters / 3.9 quarts

Powertrain* Drive clutch type: TRA VII
* Driven clutch type: QRS
* Engagement: 3800 RPM
* Small sprocket number of teeth: 19
* Large sprocket number of teeth: 49
* Drive sprocket number of teeth: 8
* Drive sprocket diameter: 183 mm / 7.2 in.
* Brake system: Brembo racing brake with braided stainless-steel brake line

Dry Weight* 210 kg / 464 lb

Color Choice* Black

Dimensions* Vehicle overall length: 3335 mm / 131.3 in.
* Vehicle overall width: 1081 to 1126 mm / 42.6 to 44.3 in.
* Vehicle overall height: 1346 mm / 53 in.
* Ski stance: 907 mm or 950 mm / 35.7 or 37.4 in.
* Ski overall length: 1040 mm / 41 in.
* Track nominal width: 406 mm / 16 in.
* Track nominal length: 3923 mm / 154 in.
* Track profile height: 63.5 mm / 2.5 in. PowderMax FlexEdge

Suspension* Front suspension: RAS 2
* Front shock: HPG™
* Front suspension max. travel: 200 mm / 8 in.
* Rear suspension: tMotion
* Center shock: HPG
* Rear shock: HPG
* Rear suspension max. travel: 381 mm / 15 in.

Features* Frame: REV-XM
* Skis: Pilot DS 2
* Seating: REV-XM light weight with storage
* Handlebar: Aluminum with J-hooks / Grab handle
* Riser block height: 205 mm / 8 in.
* Electric start: Optional
* Reverse: RER
* Heated throttle lever: Standard
* Heated grips: Standard
* Gauge: Multifunction
* Mirrors: Optional
* Windshield: 285 mm / 12 in.
* Runner Square: 5/16
* Carbide configuration: 102 mm / 4 in. square type at 90°
* Hitch: Optional
