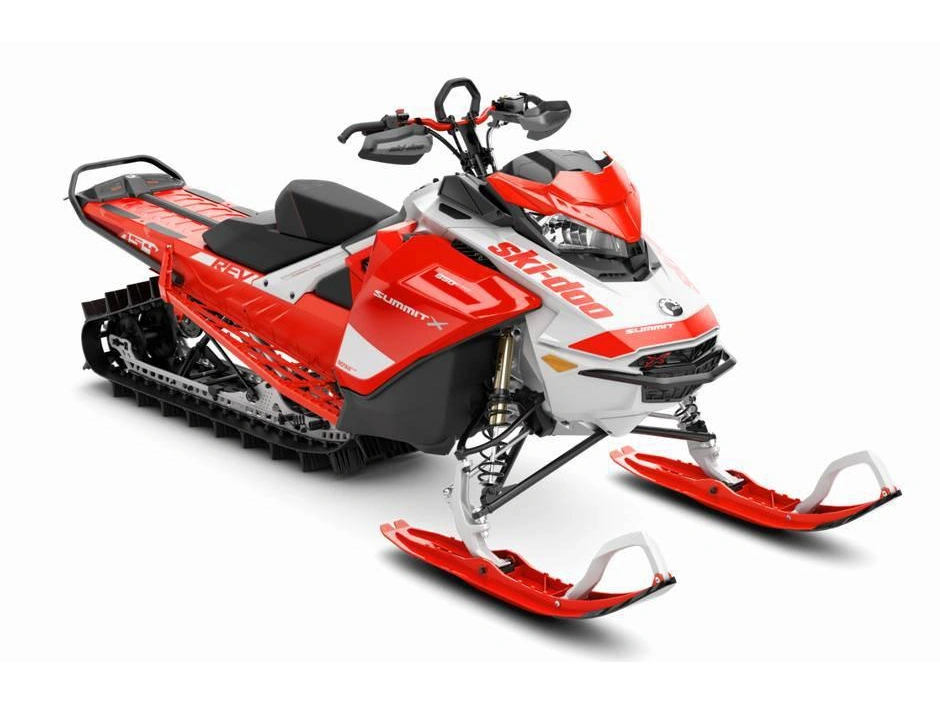

2020 Ski-Doo Summit® X® w/Expert 850 E-TEC® SHOT 154 - Lava Red

SPRING ONLY

Built with input from Ski-Doo Backcountry Experts and other real-world riders. The unique Expert package features let you go where the snow is deeper, the lines are more technical and the adventure is wilder.

Package Highlights* Specialized package with dedicated configuration and features developed with our Backcountry Experts to conquest the most technical terrains
* Short tunnel with lightweight snow fender
* Rotax® 850 E-TEC® engine
* RAS™ 3 front suspension with lighweight ski spindle and revised ski stopper to reduce ski drag and improve predictability in technical sidehills
* REV® Gen4 platform with narrow-design bodywork
* pDrive™ clutch with clickers
* Ergo-Step side panels
* Compact digital gauge
* Full-length extruded profile running boards with large openings
* tMotion™ rear suspension with ice scratchers and adjustable limiter strap
* Shock package with stiffer calibration: Kashima coated HPG Plus front shocks with lightweight springs, HPG Plus center shock with lightweight springs and KYB® Pro 36 rear shock aluminum piggyback with Easy-Adjust compression adjuster (22 clicks)
* PowderMax® Light with FlexEdge™ track choice: 16 × 154 / 165 × 3.0 in.\*
* Brembo racing brake with braided stainless-steel brake line
* RF D.E.S.S.™ key
* Sea-level calibration available on all configurations
* Pilot™ DS 3 skis
* Low handlebar strap
* Two ULTIMATE color choices with panel wrap: Supreme look and finish, maximum protection
* Flexible handguards
* Short riser block (120 mm / 4.7 in.)
* Smaller diameter handlebar and handgrips
* Compact and lightweight FORTY7C seat

Engine* ROTAX® Engine: 850 E-TEC®
* Engine details: Liquid-cooled, two-stroke, eRAVE™
* Cylinders: 2
* Displacement: 849 cc / 51.9 in.³
* Bore: 82 mm / 3.2 in.
* Stroke: 80.4 mm / 3.2 in.
* Maximum engine speed: 7,900 RPM
* Carburation: E-TEC® direct injection with additional booster injectors
* Recommended fuel type: Premium unleaded
* Minimum octane: 91
* Fuel tank: 36 L / 9.5 US gal
* Oil tank capacity: 3.4 L / 3.6 qt

Powertrain* Drive clutch type: pDrive™ with clickers
* Driven clutch type: QRS
* Engagement: Sea-Level: 3,300 RPM / High Altitude : 3,600 RPM
* Small sprocket number of teeth: 21
* Large sprocket number of teeth: 51 (154 in.) 53 (165 in.)
* Drive sprocket number of teeth: 6
* Drive sprocket diameter: 164 mm / 6.5 in.
* Brake system: Brembo racing brake with stainless-steel braided brake line

Dry Weight* Dry Weight: 200 kg / 440 lb (154 in.)

Color* Ultimate Lava Red/White

Dimensions* Vehicle overall length: 3,227 mm / 127 in. (154 in.)
* Vehicle overall width: 1,080 to 1,110 mm / 42.5 to 43.7 in.
* Vehicle overall height: 1,292 mm / 50.9 in.
* Ski stance: 910 or 950 mm / 35.8 or 37.4 in.
* Ski overall length: 1,058 mm / 41.7 in.
* Track nominal width: 406 mm / 16 in.
* Track nominal length: 3,912 mm / 154 in.
* Track profile height: 76.2 mm / 3.0 in. PowderMax® Light with FlexEdge™

Suspension* Front suspension: RAS™ 3
* Front shock: Kashima coated HPG™ Plus with lightweight springs
* Front suspension max. travel: 215 mm / 8.5 in.
* Rear suspension: tMotion™ with adjustable limiter strap
* Center shock: HPG™ Plus with lightweight spring
* Rear shock: KYB® Pro 36 Easy-Adjust
* Rear suspension max. travel: 239 mm / 9.4 in.

Features* Frame: REV® Gen4
* Bodywork: Narrow design
* Skis: Pilot™ DS 3
* Seating: FORTY7C
* Handlebar: Tapered U-shaped aluminum with J-hooks / Low grab handle / Flexible handguards
* Riser block height: 120 mm / 4.7 in.
* Starter: Manual, SHOT (opt.)
* Reverse: RER™
* Heated throttle lever/ grips: Standard
* Gauge: Compact
* Mirrors: Optional
* Windshield: Optional
* Runner: Square 3/8
* Carbide configuration: 102 mm / 4 in. at 90°
* Hitch: Optional

Gauge Features* Speedometer: Standard
* Tachometer: Standard
* Fuel: Standard
* Engine temperature: Standard
